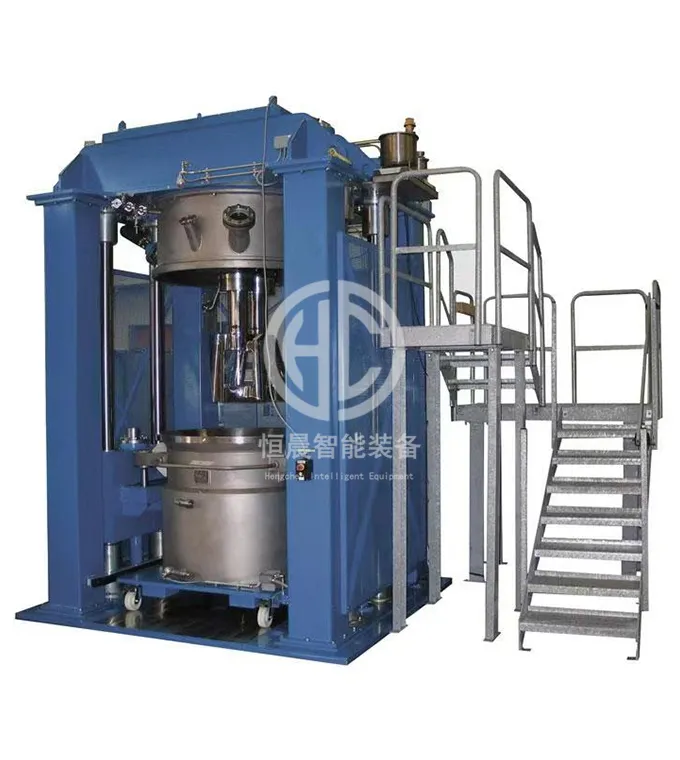

Vertical Kneader
The Vertical Kneader is a vertical-axis mixing equipment specifically designed for processing high-viscosity and elasto-plastic materials. It achieves high-efficiency mixing through a planetary stirring or twin-blade kneading structure. Its core advantages include zero-dead-zone mixing and high shear force, making it ideal for processes such as kneading, compounding, and polymerization in fields like silicone rubber, composite materials, and food dough.
Typical Application Areas:
- Polymer Materials: Special silicone rubber polymerization, carbon fiber composite material compounding;
- Defense & Energy: Solid propellant preparation, energetic material mixing;
- Food & Pharmaceutical: High-viscosity drug mixing, dental resin processing.
Product Description
Features of Vertical Kneader
Power System:
- Main motor power range: 7.5–160 kW, with planetary gear drive for revolution (30 rpm) and rotation (0–80 rpm);
- Hydraulic lifting device enables quick opening and closing of the barrel, improving discharge efficiency by 40%.
Agitator Design:
- Dual kneading blades (Σ-type or Z-type) provide differential speed shearing, suitable for materials with viscosities ranging from 50 to 4,500,000 cP;
- Hollow blades allow steam heating, with an internal-to-external steam distribution ratio of 3:1, preventing material adhesion.
Auxiliary Systems:
- Vacuum level up to 200 Pa, supporting degassing and reaction processes;
- Four independent temperature control modules (total power: 36 kW), with an accuracy of ±1°C.
Technical Parameters of Vertical Kneader
| Parameter | Industrial Grade (e.g., 160L) | Laboratory Grade |
| Capacity | 160L | 5–50L |
| Vacuum Degree | 200 Pa | 5 Pa |
| Temperature Control Precision | ±2°C | ±1°C |
| Application Scenarios | Large-scale production | R&D and pilot production |
